Simple Tech Drives Reliable Remote Power Unit

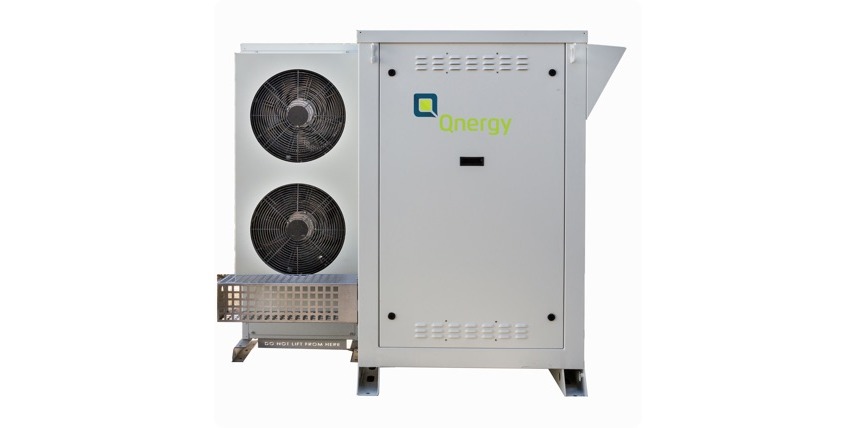

remote power unit driven by Stirling engine
The Qnergy remote power unit utilizes a simple
Stirling engine to generate electric power.
Image courtesy Qnergy
M.S. Jacobs and Associates handles the Qnergy line of remote power units, providing electric power to off-grid locations or standing as a backup power source for critical operations. Wherever backup or independent source electric power is needed, Qnergy remote power units can serve as a reliable and economical power source, requiring little to no maintenance.

The technology under the hood in the Qnergy power units is a Stirling engine, adapted and improved by decades of innovation. The engine derives energy input via external combustion, enabling the use of a variety of fuels.
  • Natural gas
  • Propane
  • Ethane
  • Biogas
  • And others
The Stirling engine utilizes a floating piston with no contact points to wear. The system requires no lubrication or regular maintenance, very positive attributes for a remote power unit. Share your project requirements and challenges with application specialists, combining your own knowledge and experience with their product application expertise to develop effective solutions.


Thursday, October 19, 2017

Bag Filter Housings For Liquid Filtration



Filtration is a common processing step in many liquid based industrial operations. Applying the right degree of filtration or particle capture helps assure a predictable level of output quality. Selecting a bag filtration unit should incorporate a number of factors to meet the goal of good performance with a minimized personnel commitment to maintenance.

  • Materials of construction must be compatible with the process liquid, as well as providing resistance to the effects of their surrounding environment.
  • Connection size and type should be adequate for anticipated flow rate and compatible with the connected piping system.
  • Installation location should permit all around access for service, including clearance for opening the unit for filter bag changes.
  • Pressure rating of the housing must meet any applicable requirements of the process, jurisdiction or industry standards.
  • Provide an adequate arrangement to isolate the filtration unit from the fluid system, perhaps with a bypass loop, to allow for in-place access.
The short video illustrates some of the salient features of bag filtration housings that accommodate multiple filter bags. Share your filtration requirements and challenges with processing specialists, leveraging your own processing knowledge and experience with their product application expertise.

Wednesday, October 11, 2017

Pressure and Vacuum Sealed Feedthrough Fittings

multiple versions of vacuum feedthroughs, vacuum chamber feed through fitting
Several versions of vacuum chamber feedthrough fittings.
Image courtesy of Spectite, Inc.
The passage of sensor tubes, electrical conductors, or similar items through the wall of a pressure vessel requires the use of a special fitting that accommodates the physical passage through the vessel wall without compromising the vessel performance. The provision of the right connectors, mounting fitting, and sealant assure simple and effective installation of the feedthrough fitting. Vacuum and pressure feedthroughs are an important part of the physical signal path and the vessel barrier wall, maintaining the integrity of the vessel or chamber containment while facilitating the passage or placement of power, sensors, or other items.

There are countless applications for feedthroughs, resulting in a broad offering of body styles, sealants, connections, and customized arrangements to meet any challenge. Spectite manufactures a broad range of vacuum and pressure feedthroughs, any of which can be customized to meet an application challenge. Share your project requirements with a product specialist, leveraging your own process knowledge and experience with their product application expertise to develop an effective solution.



Wednesday, October 4, 2017

Electronic Pressure Switches

electronic pressure switch NEMA 4 enclosure
Electronic pressure switch in NEMA 4 enclosure.
Image courtesy of Ashcroft
A pressure switch is a device that detects and responds to fluid pressure. Pressure switches use a variety of sensing elements such as diaphragms, bellows, bourdon tubes, pistons or electronic sensors. In all but the electronic sensor versions, the movement of the sensing element, caused by pressure fluctuation, is transferred to a set of electrical contacts to open or close a circuit. Electronic pressure switches utilize a sensor signal and circuitry to control switch activation.

The normal status of a switch is the resting state with stimulation. A pressure switch will be in its normal state when low or minimum pressure is applied. For a pressure switch, normal status is any fluid pressure below the trip threshold of the switch.

One of the earliest and most common designs of pressure switch was the bourdon tube pressure sensor with a mercury switch. When pressure is applied, the bourdon tube flexes enough to tilt the glass bulb of the mercury switch so that the mercury flows over the electrical contacts, thus completing the circuit. the glass bulb tilts far enough to cause the mercury to fall against a pair of electrodes, thus completing an electrical circuit. Many of these pressure switches were sold on steam boilers. While they became a de facto standard, they were sensitive to vibration and breakage of the mercury bulb.

Pressure switches using micro type electrical switches and force-balanced pressure sensors is another common design. The force provided by the pressure-sensing element against a mechanical spring is balanced until one overcomes the other. The tension on the spring may be adjusted to set the tripping point, thus providing an adjustable setpoint.

One of the criteria of any pressure switch is the deadband or (reset pressure differential). This setting determines the amount of pressure change required to re-set the switch to its normal state after it has tripped. The differential pressure setting of a pressure switch should not to be confused with a differential pressure switch, which actually operates on the difference in pressure between two separate pressure input ports.

Electronic pressure switches provide some features which generally are considered advantageous to mechanical designs.
  • No mechanical linkage between sensing element and switch, all electronic.
  • High cycle rates are possible.
  • High levels of accuracy and repeatability.
  • Some models have additional features, analog output, digital display, auxiliary switches, and more.
When selecting pressure switches you must consider the electrical requirements (volts, amps, AC or DC), the area classification (hazardous, non-hazardous, general purpose, water-tight), pressure sensing range, body materials that will be exposed to ambient contaminants, and wetted materials.

Whatever your pressure measurement application, share your challenges with a fluid measurement and control specialist, combining your own knowledge and experience with their product application expertise to develop effective solutions.
