Duplex Basket Strainer

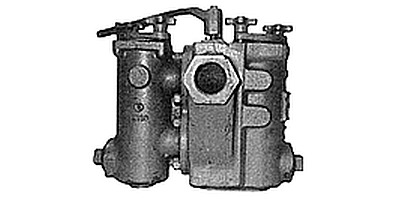

duplex basket strainer with changeover diverter valve
A duplex basket strainer allows continuous process flow
when strainer basket requires cleaning.
Image courtesy Fabrotech
Liquid processing systems of many types and application require protection from particulate matter in the flow path. Often, there are mechanical components that cannot tolerate particulate matter greater than some maximum diameter. Pumps, valves, sensors, and other specialties can experience accelerated wear and tear, even clogging, from particulate matter entrained within the liquid flow.

Once the maximum particulate diameter has been determined for various portions of the system, a plan can be implemented that provides a properly sized and configured device in place to remove particulates larger than the greatest allowable size. It is conceivable that identifiable parts of a system will have differeing protection requirements, resulting in the use of several or many different filtration elements throughout the system. Filtration units can range from very small inline filter units protecting a single instrument, to large centralized high flow rate units protecting extended portions of the system.

A basket strainer will be an appropriate choice for many applications. Coordination of strainer housing connection size and type, along with design flow rate and pressure drop are in order. The materials of construction for the housing, strainer basket and other wetted parts should be evaluated for suitability with the process media. A final consideration is the holding capacity of the strainer basket itself. Too small a strainer will lead to a service frequency for cleaning that can prove cumbersome for operating personnel.

Regardless of the type of strainer or filter used, a key consideration is whether the system can be temporarily shut down, or the filter bypassed, while replacement or cleaning of the filtration element is accomplished. A basket strainer, one of several types of liquid filtration devices, is available in both simplex and duplex variants. A simplex basket strainer functions as a single inline unit, requiring flow stoppage or bypass when the basket becomes clogged with debris. The changeover time may not be long, but some processes cannot tolerate any downtime. A duplex strainer is comprised of two simplex strainers incorporated into a common housing. An inlet chamber and diverting valve selects which strainer basket will process the liquid flow, while isolating the other. Changes in pressure drop through the device can be used to signal when it is time to switch operation between the strainer sections.

Fluid filtration is an important part of keeping a process in operation, reducing wear and tear on piping system components and equipment. Share your process fluid filtration challenges and requirements of all types with application specialists. Leverage your own process knowledge and experience with their product application expertise to develop an effective solution.

Thursday, October 19, 2017

Bag Filter Housings For Liquid Filtration



Filtration is a common processing step in many liquid based industrial operations. Applying the right degree of filtration or particle capture helps assure a predictable level of output quality. Selecting a bag filtration unit should incorporate a number of factors to meet the goal of good performance with a minimized personnel commitment to maintenance.

  • Materials of construction must be compatible with the process liquid, as well as providing resistance to the effects of their surrounding environment.
  • Connection size and type should be adequate for anticipated flow rate and compatible with the connected piping system.
  • Installation location should permit all around access for service, including clearance for opening the unit for filter bag changes.
  • Pressure rating of the housing must meet any applicable requirements of the process, jurisdiction or industry standards.
  • Provide an adequate arrangement to isolate the filtration unit from the fluid system, perhaps with a bypass loop, to allow for in-place access.
The short video illustrates some of the salient features of bag filtration housings that accommodate multiple filter bags. Share your filtration requirements and challenges with processing specialists, leveraging your own processing knowledge and experience with their product application expertise.
